Pedestrian Cable Protector SN219 | 1m Yellow Rubber Drop-Over Channel UK

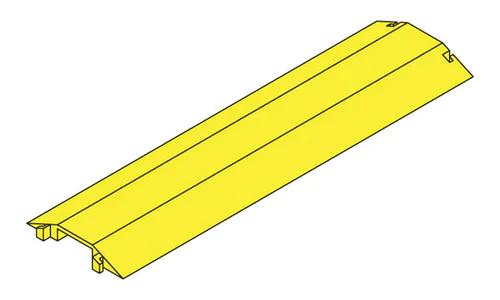

SN219 Pedestrian Cable Protector — 1m Yellow Drop-Over Type

The SN219 Pedestrian Cable Protector is a professional cable management solution for pedestrian areas where cables must cross walkways safely. The bright yellow colouring provides maximum visibility — alerting pedestrians to the cable run while the rubber channel underneath protects cables from foot traffic pressure. Supplied in 1m lengths with integral male/female connectors for extending runs to any required length.

The drop-over design allows installation without lifting floor surfaces — simply place over existing cables. The 100 × 30mm channel accommodates most cable bundles including power, data, AV, and temporary distribution cables. At just 3kg per metre, deployment and retrieval are one-person tasks.

Key Features

• High-visibility yellow — Maximum pedestrian awareness of cable run
• Drop-over installation — No floor preparation, place directly over cables
• Integral male/female connectors — Link multiple units for longer cable runs
• Cable channel: 100 × 30mm — Accommodates standard power, data, and AV cable bundles
• Lightweight: 3kg — Easy single-person deployment and recovery
• Rubber construction — Durable, flexible, weather resistant
• Low-profile design — Minimises trip hazard while protecting cables
• Free UK delivery

Product Specifications

Parameter	Value
Model	SN219
Dimensions (L × W × H)	1000mm × 270mm × 40mm
Cable channel dimensions	100mm × 30mm
Weight	3kg per 1m unit
Colour	Yellow
Material	Rubber
Connectors	Integral male/female for linking units
Type	Drop-over (single channel)

Applications

• Events and exhibitions — Temporary power and AV cable management across aisles
• Offices and workplaces — Crossing cables over pedestrian walkways
• Construction sites — Protecting temporary power cables in foot-traffic areas
• Film, TV and broadcast — On-set cable management for studio and location work
• Retail and hospitality — Temporary display power cable protection
• Schools and education — AV and IT cable management in corridors

Linking Multiple Units

Each SN219 unit includes male and female connectors at each end. Simply push adjacent units together to extend the run. For straight runs across wide corridors or large exhibition halls, link as many units as needed. Units can also be configured around bends with flexible connector sections.

Frequently Asked Questions

What is the maximum cable diameter this protector can accommodate?

The SN219 cable channel is 100mm wide × 30mm high — suitable for flat cable bundles or multiple round cables. For thicker single cables (e.g. 32A power cables) or larger cable bundles, our heavier duty vehicular cable protector range provides larger channel dimensions.

Can the SN219 be used in outdoor areas?

Yes — the rubber construction is weather resistant. For outdoor use, ensure the protector is secured against wind displacement if used in exposed locations.

Is this suitable for vehicle traffic?

The SN219 is designed for pedestrian areas only. For applications involving vehicle crossings, our vehicular cable protector range is rated for van and car traffic.
